HDTV – What is it?
High-definition television, or HDTV, is a new way of broadcasting TV programs that is far superior to “regular” TV in both picture and sound. Why the difference?

• High-definition (HD) broadcasts use a digital signal, while the standard TV signals you’ve been watching for years are analog. Digitals signals can support a higher resolution. HDTVs have resolutions of 1280x720 pixels or better.
• HD broadcasts support 5.1 channel Dolby Digital surround sound, which is similar to the sound you hear in movie theatres. You may already have a TV that offers surround sound. However, you probably only experience true surround sound when you watch DVDs and videos – not when you’re watching broadcast TV. HD broadcasts feature true surround sound. That means you can enjoy true surround sound with your favorite TV programs in addition to DVDs and videos.

Key terms:

An integrated HDTVhas a built-in digital ATSC tuner and has resolution of 720p or higher. Since 2007, the majority of new televisions sold have been HDTVs. That is because beginning March 1, 2007, all television reception devices imported into the U.S. or shipped via interstate commerce must contain a digital tuner. Thus, all new TVs sold by retailers should be equipped with a digital tuner. Nearly all also have HD quality resolution, deeming most new TVs to be HDTVs. To receive and display any free and available over-the-air HD broadcasts on your HDTV, all you need to do is purchase an HD antenna. Or you can simply plug into your existing digital cable or satellite set-top box; however, some carriers may charge extra for an HD-compatible set-top box or require you to subscribe to additional programming to receive HD broadcasts.

Contrast Ratio -  This refers to the difference between the brightest whites and the darkest blacks a TV can display.  The key thing to consider is how “black” your blacks will be. A higher contrast ratio means a deeper black. In addition, a higher contrast ratio also means you can have more ambient light in the room without washing out the on-screen color. As of 2006, contrast ratios range from 300:1 to 5000:1 for home theatre projectors to 10,000:1 on high-end plasma and LCD TVs.

Frame rate – A TV’s frame rate describes how many times it makes a complete picture on the screen every second. Again, the higher the number, the faster images are processed. This makes a difference when watching fast-moving action or playing fast-paced video games with lots of action. The two most common numbers you’ll see are 720p and 1080i.

What do the “I” and “p” mean? The “I” indicates that the TV draws images using an interlaced method. The “p” indicates that the TV draws images using a progressive scan method. In general, progressive scan renders images faster and produces a more detailed, film-like image.

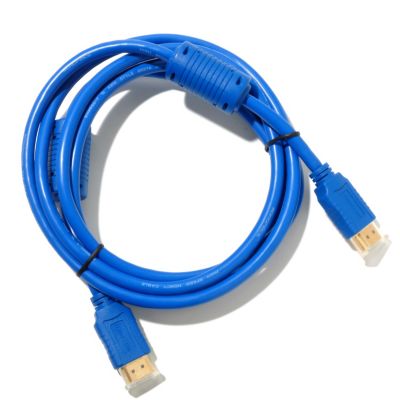

HDMI – High-Definition Multimedia Interface, or HDMI, is a new type of connector cable that carries both all-digital audio and video signals over a single cable, eliminating the need for separate cables to connect your audio and video components. No more tangled mess of cables! In addition, HDMI cables deliver the best possible digital quality signals for both audio and video.

Response Time -  This refers to the time it takes a pixel to change state from black-to-white-to-black again. In general, the faster the response time, the better the picture, especially when viewing fast action in movies, sports, and video games. Plasma and CRT televisions have virtually instantaneous response time, while LCD models tend to be a bit slower. The slower response time can result in what is referred to as “image lag” or a slight blurring of fast-moving images. As of 2007, a “fast” response time is considered to be anywhere from 8msec to 3msec.

• Wireless: Wi-Fi (802.11a/b/g/n)
• Audio Formats: -HE-AAC (V1), AAC (16 to 320 Kbps), protected AAC (from iTunes Store), MP3 (16 to 320 Kbps), MP3 VBR, Audible (formats 2, 3, and 4), Apple Lossless, AIFF, and WAV; Dolby Digital 5.1 surround sound passthrough.
• Video Formats:
  H.264 video up to 1080p, 30 frames per second, High or Main Profile level 4.0 or lower, Baseline profile level 3.0 or lower with AAC-LC audio up to 160 Kbps per channel, 48kHz, stereo audio in .m4v, .mp4, and .mov file formats.
  MPEG-4 video up to 2.5 Mbps, 640 by 480 pixels, 30 frames per second, Simple Profile with AAC-LC audioup to 160 Kbps, 48kHz, stereo audio in .m4v, .mp4, and .mov file formats
  Motion JPEG (M-JPEG) up to 35 Mbps, 1280 by 720 pixels, 30 frames per second, audio in ulaw, PCM stereo audio in .avi file format.

• Wi-Fi (802.11a, b, g, or n) wireless network (wireless video streaming requires 802.11a, g, or n) or 10/100BASE-T Ethernet network
• iTunes Store account for buying or renting movies and buying TV shows
• Netflix account for streaming Netflix content
• For streaming media from a Mac or PC: iTunes 10.6 or later; iTunes Store account for Home Sharing
• MLB.TV subscription required to watch live and archived games
• NBA.com League Pass Broadband subscription required to watch live and archived games
• NHL GameCenter Live subscription required to watch live and archived games
• Compatible with high-definition TVs with HDMI and capable of 1080p or 720p at 60/50Hz, including popular models from these manufacturers: Hitachi, JVC, LG, Mitsubishi, NEC, Panasonic, Philips, Pioneer,Samsung, Sharp, Sony, Toshiba, Vizio, Westinghouse
